Support for new models:

• The recently released GigaCore O26-I, an all SFP switch, can now be fully managed in Araneo.

New Features:

• Online and offline configuration
  This release prepares your LumiNode / LumiCore devices to support the new features in Araneo Studio v1.2.0, offering a flexible workflow to manage and deploy LumiNode / LumiCore configurations across the network.
  ‍
• Performance and usability improvements

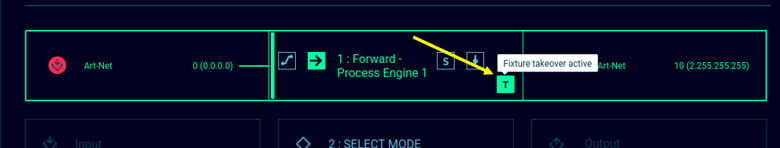

  ‍An indication and tooltip was added in the WebUI to inform users when a process engine is occupied with a fixture take-over action.
  ‍
• Added tooltip to the WebUI Process Engine drag-and-drop feature
  giving users extra information when copying process engines by dragging and dropping.

‍

Improvements:

• A function was added where users can choose to load the previous layout
  automatically for the online mode, when Araneo starts up. This improves workflow and reduces the time to get up and running.
• Improved graphic representation of redundant paths: When a backup path is activated in a redundant network topology, e.g. after disconnecting a network cable between two trunk ports, we suppress the previously displayed red coloured, edge device disconnection lines towards those ports as the devices’ connections to the network are still stable.

Bug Fixes:

• A fix was implemented for an issue where canceling out of certain dialog fields could temporarily make other dialogs unavailable.
• A bug was fixed where, when applying a reset in the Network page, did not reset the Gateway settings.
• An issue was resolved where duplicate sACN entries could appear on the output.

‍

Upgrade to this version from within Araneo or download this from www.luminex.be‍

Upgrade your firmware here.

‍

also read: Discover Araneo Studio v1.2.0 from Luminex
