The CueCore2 device is completely solid-state, with no moving parts and it’s an easy to program and low-maintenance installation control solution that has a minimal power consumption.

The onboard large memory allows for storing DMX shows which can be downloaded from CueluxPro or recorded from DMX, Art-Net or sACN. Playback can be fully automated and triggered by various IP based protocols including UDP / OSC / TCP. The support of many protocols makes the CueCore2 a very powerful merging device. All operating and programming is done through its dynamic web interface. The CueCore2 includes a 2-universe licence of the CueluxPro Lighting control software and is now available from stock.

Specifications

• 2x DMX-512 opto-isolated bi-directional port
• MIDI in/out
• SMPTE
• 4x GPI port
• Ethernet port
• Real-time clock with battery back-up
• Supports ArtNet, sACN, TCP, UDP & OSC
• Desktop or DIN Rail mounted
• Kensington lock
• Temperature range: -20° C / 50° C
• PoE Class I

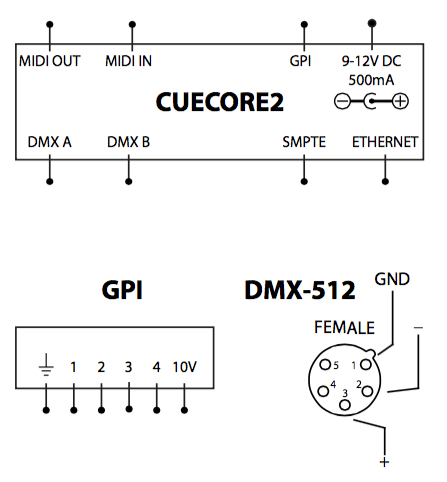

Connection Scheme

Introduction at Prolight + Sound 2016 by Maarten Donath

Download datasheet
