PERSEO-S with an IP65 enclosure rating developed by AYRTON

April 15, 2019

FACE PRO

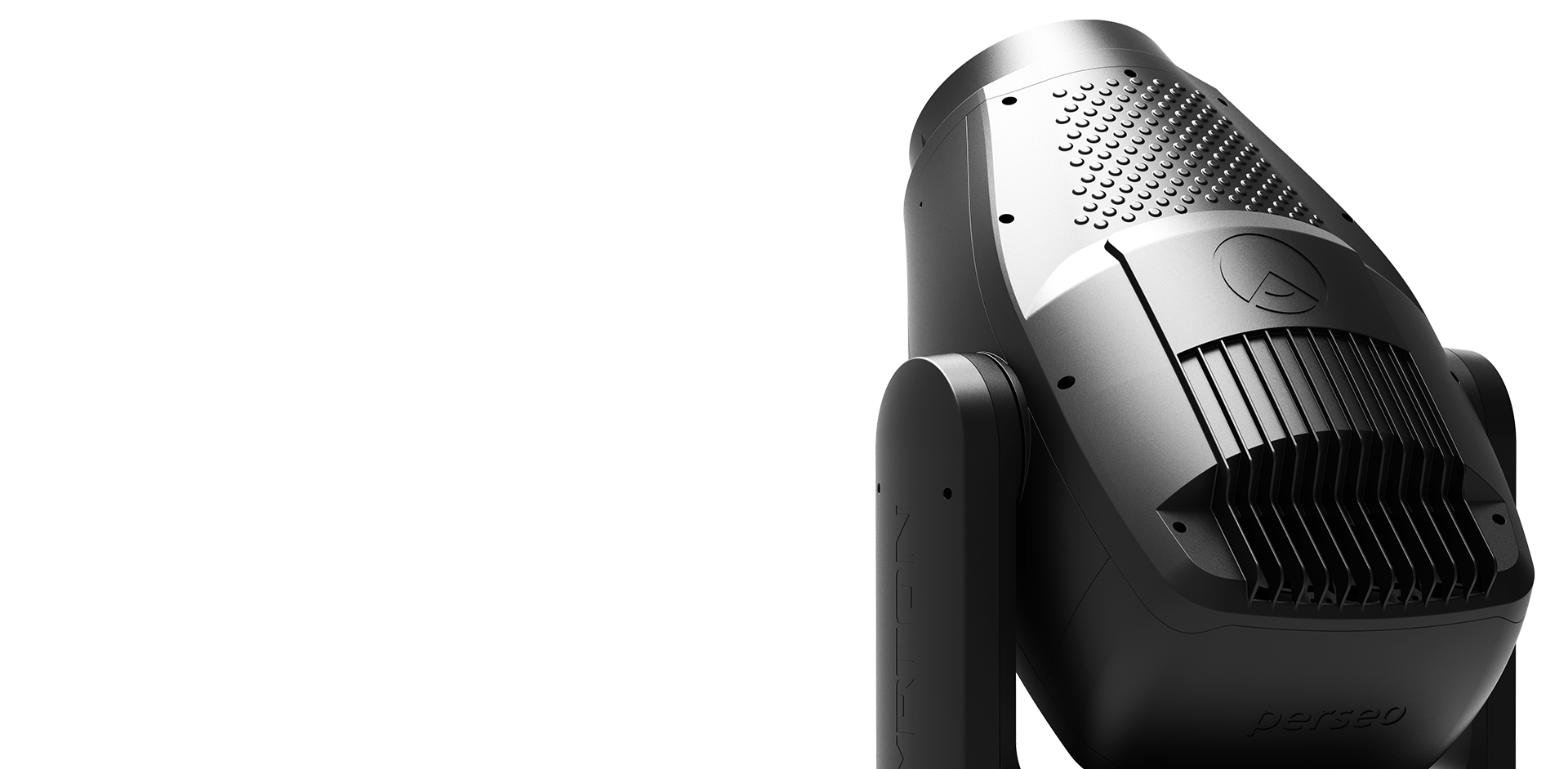

PERSEO-S is the first compact multi-function luminaire with an IP65 enclosure rating developed by AYRTON for intensive outdoor use.
PERSEO-S  with an IP65 enclosure rating developed by AYRTON

Equipped with a new 500 W ultra-compact monochromatic LED source calibrated at 8000 K, it can deliver metallic white light with an output of 27,000 lumens. AYRTON has specifically developed the optics in PERSEO-S to achieve an optimal resolution-to-performance-to-efficiency ratio. They allow perfect image reproduction and significant improvement from distortion caused by the shutter blades with wide zoom. The optics produce a highly uniform flat beam with no hot spot, achieving a perfect colour mix regardless of the colour combination selected. Fitted with a 148 mm frontal lens, this proprietary system has 13 lenses, delivering an 8:1 zoom ratio and a zoom range of 7° to 56°. AYRTON has endowed this next generation luminaire with a new minimalist design in lighter weight die-cast aluminium, incorporating full weather-proofing features that ensure easy accessibility. For greater efficiency, PERSEO-S is provided with a highly effective phase-change liquid cooling system fitted with four submersible fans located outside the watertight enclosure.

The ultimate in versatility, designed for multiple outdoor and indoor applications,

PERSEO-S boasts feature-rich standard equipment including a subtractive CMY colour mixing system combined with a variable CTO and a wheel with six complementary colours that produces an infinite palette of vivid pastels and saturated colours. The framing section allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. The image section includes 18 interchangeable HD glass gobos on two wheels: one rotating wheel with seven positions and one fixed wheel with eleven positions. The effects section includes a continuous dynamic effects wheel; a 15-blade iris diaphragm; two frost filters, one soft edge, one hard edge; and two rotating prisms, one circular with 5 facets and one linear with 4 facets. PERSEO-S presents a sleeker, updated, industrial design, with perfectly straightened yoke arms, a minimalist base and a new water-resistant menu navigation system. PERSEO-S can be controlled by DMX-RDM, ArtNet™ or a wireless link using CRMX TiMo RDM from LumenRadio™.

Technical specifications

OPTICS
  • 13-elements, 8:1 zoom high-resolution optic system
  • Beam aperture: 7° to 56°
  • Fast motorised linear zoom
  • Tempered anti-reflective coated lenses
  • 148 mm frontal lens for greater performance
LIGHT SOURCE
  • 40,000-lumen 8000 K white light engine
  • Total luminaire output: up to 27,000 lumens
  • Colour temperature output: 6500 K
  • CRI: greater than 70
  • Rated life (L70): up to 40,000 hours
  • Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
  • Extremely accurate positioning
  • Moving-head operated via either 8- or 16-bit resolution
  • High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
  • Pan and tilt automatic repositioning
  • Moving head range: 540° (pan), 270° (tilt)
COLOURS
  • Sophisticated colour mix system providing CMY colour mixing
  • Variable CTO colour temperature correction
  • Fixed colour wheel with six complementary colours
GOBOS
  • Indexable rotating gobo wheels with 7 high-precision glass gobos, plus open position
  • Adjustable-speed rotating gobo in both directions
  • Fixed gobo wheel with with 11 high-precision glass gobos, plus open position
  • Gobo diameter: 27.0 mm
  • Image diameter: 22.0 mm
  • Gobo thickness: 1.1 mm
FRAMING SYSTEM
  • 4 individually positionable shutter blades on a 100% surface area in all positions
  • Rotation of the framing system module: +/- 45°
IRIS DIAPHRAGM
  • Fast iris diaphragm with adjustable dynamic effects
  • Iris range: 15% to 100% open
FROSTS
  • 2 frost filters: one light, one heavy
EFFECTS
  • Focusable graphic animation effect-wheel with continuous rotation in both directions
  • 2 rotating and indexable prisms: one 5-facet circular, one 4-facet linear
  • Sparkle effect: dynamic animation effect with speed and fade adjustment
DIMMER / STROBE
  • Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
  • Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
  • Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
  • Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
  • Information menu including hour counter, temperature, software version
HARDWARE FEATURES
  • Graphic LCD display for addressing and special functions settings, with flip function
  • 5 menu buttons to set the functions
  • Excess temperature protection
  • Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
  • IP65 XLR 5-pin male and female connectors for DMX connection
  • IP65 etherCON RJ45 IN / OUT connectors for ArtNet™ connection
  • IP65 powerCON TRUE1 male connector for power connection
CONTROL
  • DMX 512 protocol, through IP65 DMX cable or a wireless system
  • DMX-RDM compatible
  • Stand-alone mode and Master/Slave modes
  • ArtNet™ & sACN protocol through IP65 Ethernet cable
  • Local control panel, with IP65 LCD display
  • Choice of 4 DMX modes (from 38 to 61 DMX channels)
POWER SUPPLY
  • Electronic supply with active PFC
  • 100 to 240 Volts – 50/60 Hz
  • Power: 900 W maximum
COOLING SYSTEM
  • Advanced liquid cooling system
  • IP68 self-adjusting variable speed fans for quiet operation (Auto mode)
  • Selectable ventilation user modes with a new Silent Mode
  • Safety protection against excess temperature
HOUSING
  • Moving-head skeleton made of die-cast aluminium
  • Base in die-cast aluminium
  • Heatsinks in aluminium and copper
  • Moulded covers in die-cast aluminium and self-extinguishing fire retardant ABS PC (V0 class)
  • Two-side handles for transportation
  • Four heavy-duty feet for better stability
  • IP65 protection rating
  • Exterior finish: black (Carbon)
INSTALLATION
  • Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
  • Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
  • Safety cable attachment point
OPERATING PARAMETERS
  • Operating positions: all (device on floor or fixed to a support)
  • Maximum permitted ambient temperature (Ta max): 45 °C (113 °F)
  • Minimum permitted ambient temperature (Ta min): -10 °C (14 °F)
  • Minimum usage distance: 2.0 m (6.56 ft)
SIZE
  • Product: 490 x 710 x 329 mm (l x h x d)
  • Flight-case foam: 655 x 590 x 555 mm (l x h x d)
WEIGHT
  • Product: 38.8 kg
