Applicable models:

• LumiNode range
• LumiCore range

New Features:

• It is now possible to use a record button to configure the startup buffer: With the record button, the current output of the process engine will be set in the startup buffer configuration window.

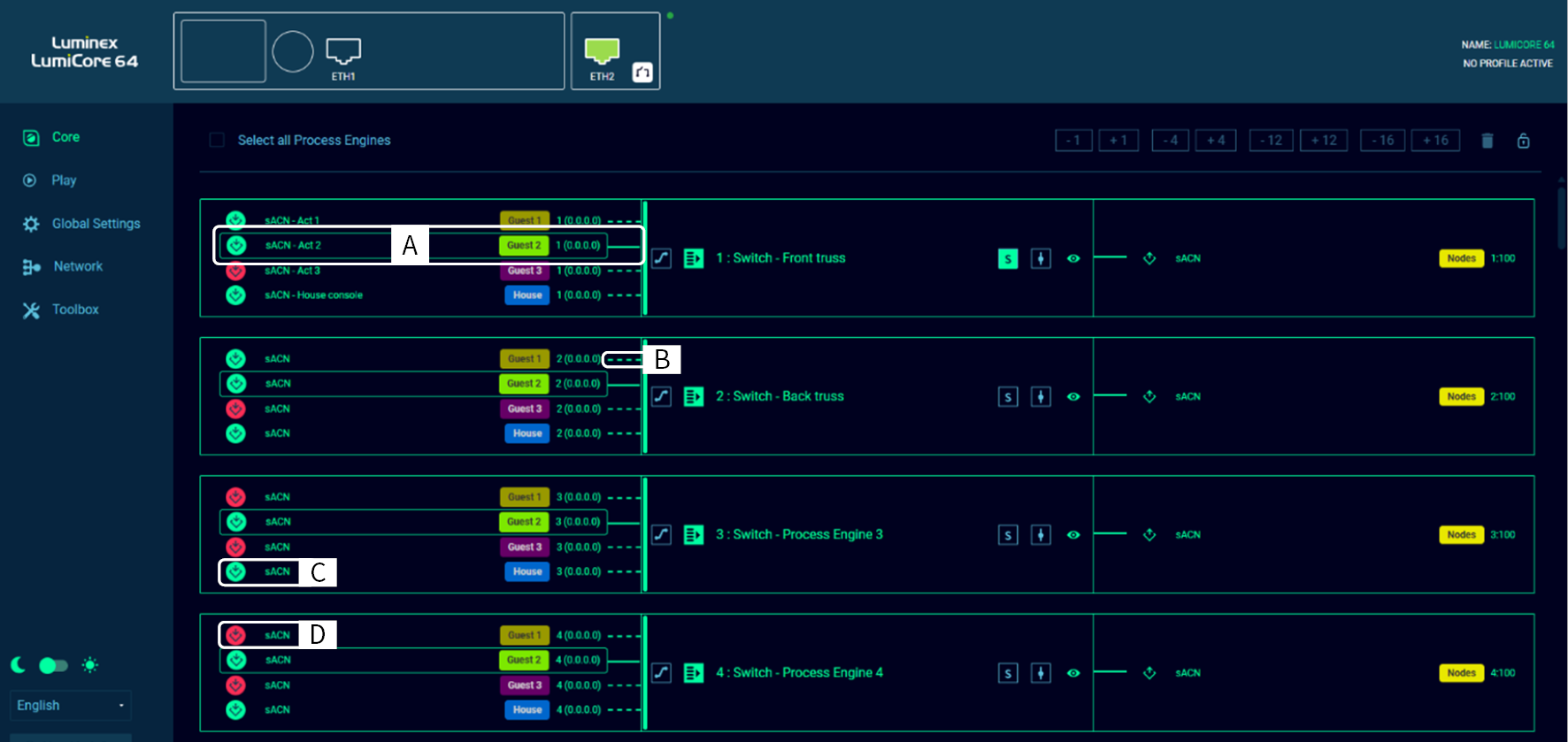

• Improved visualization of selected inputs:

  • Merge mode status for Switch and Backup:

    • Now a frame is displayed to highlight at selected input.
    • Inputs that are not selected are visually connected with a dashed line to the engine.
  • Input source status:

    • The state of the input source is now displayed with a green input icon (actively sending data) or a red input icon (inactive source)


• The device’s short name is now displayed in the top right corner of the web interface. This allows for easier identification when multiple browser tabs are opened.

Improvements:‍

• DMX hold/continuous is now shown with a heartbeat blink, indicating the port is active but no new data is received (last values held).
• Hovering over a play input in the web interface will now show which Play scene / snapshot is active and which one is played next.
• Drag-and-drop now also copies and increments internal inputs, simplifying multi-engine setup.

Bug Fixes:

• An issue has been rectified where sometimes the wrong DMX port was removed from the process engine. [Note: a very specific order of operations was needed to trigger this].
• An issue has been resolved where the web interface would show ‘no active connection’ in certain situations where web authentication was enabled.

‍

Read the full release notes here.

‍
